Pallet Flow Rack Systems in Baltimore, MD
Quality pallet flow rack supplied and installed by Baltimore's trusted warehouse solutions team.
Ready to get started? Get a free, no-obligation quote today.
FIFO gravity-fed pallet rack — 2 to 20 pallets deep, separate load and pick aisles, automatic rotation for dated inventory.
About Pallet Flow Rack

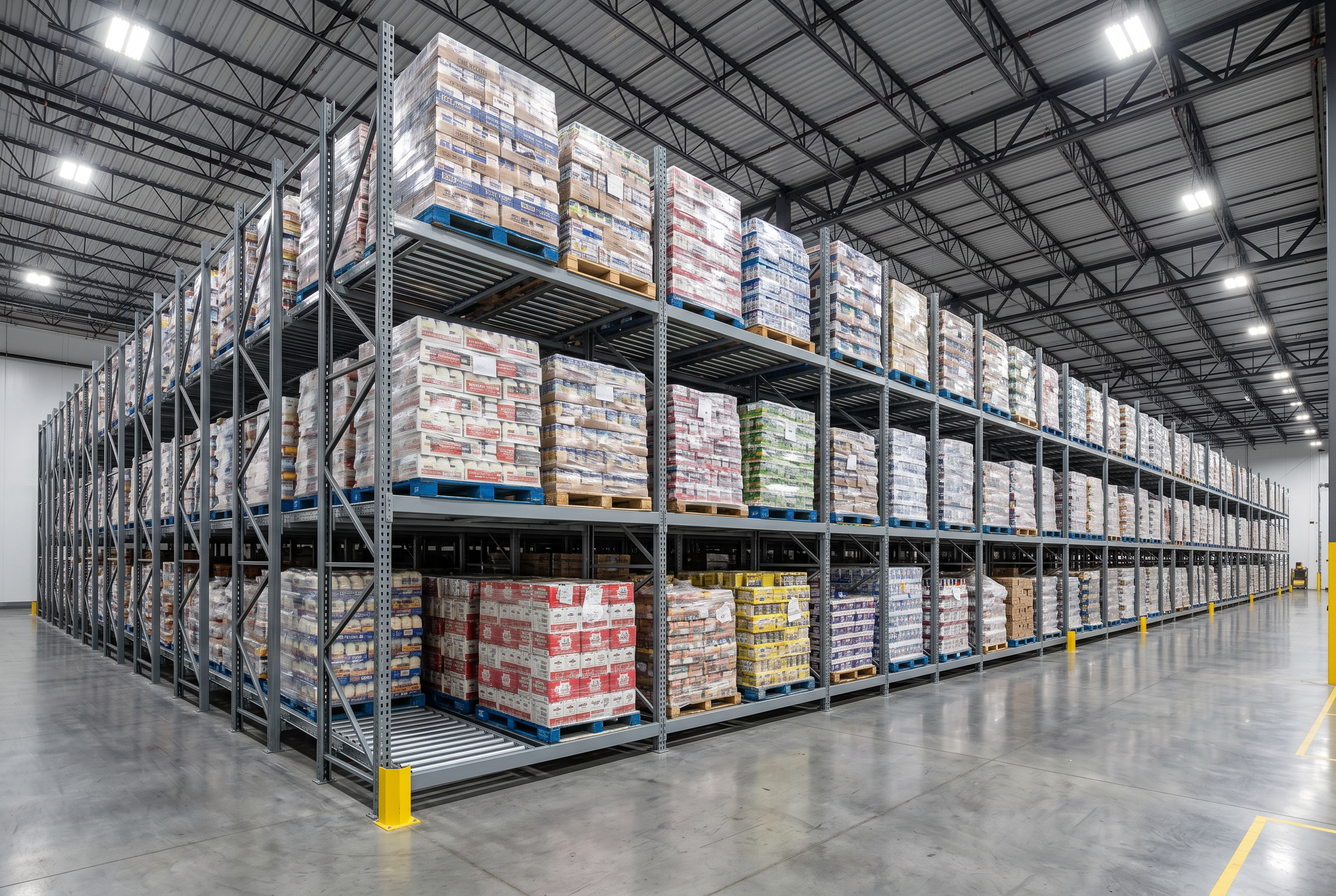

Pallet flow rack is a gravity-fed deep-lane storage system where pallets are loaded at the back of a lane, roll forward automatically on inclined roller tracks, and arrive at the pick face in FIFO (first in, first out) order. Each lane can run 2 to 20 pallets deep, with speed-control brake rollers keeping flow predictable and safe. Separate load and pick aisles eliminate forklift travel between the two operations — a major cycle-time improvement at distribution-center scale. Pallet flow is the default choice for Baltimore cold-chain grocery along the Jessup–Halethorpe I-95 corridor, the Hunt Valley pharmaceutical and food-manufacturing cluster, and the dairy, bakery, and beverage operations anchored in the metro where code-date rotation is mandatory. Baltimore Pallet Rack designs, supplies, and installs pallet flow systems engineered to IBC 2021 with Maryland amendments and RMI ANSI MH16.1-2023, with seal-stamped structural drawings for every Baltimore-area installation.
How Pallet Flow Rack Works
The mechanics behind the system — and why they matter for your operation.
Load from the rear aisle
A lift truck in the dedicated load aisle places a pallet at the back of the inclined roller lane. Each lane is pitched roughly 3 to 4 percent front-to-back.
Gravity feeds the lane forward
The pallet rolls forward on gravity-powered steel rollers or skate wheels at a speed controlled by centrifugal or hydraulic brake rollers spaced every 4 to 8 feet.
Pick from the front aisle
The pallet arrives at the front pick face in FIFO order — the oldest pallet in the lane is always next to pick, enforcing rotation automatically.
Two aisles, zero conflict
Load and pick operations happen in different aisles, so lift trucks never cross paths. That eliminates congestion in high-velocity distribution and cuts cycle times dramatically.
When to Choose Pallet Flow Rack
- • FIFO rotation is mandatory — dated food, pharma, beverage, or regulated inventory
- • You need deep lanes (7+ pallets) beyond what pushback supports
- • Throughput is high enough that separate load/pick aisles pay back in labor saved
- • You run a homogeneous-SKU lane model (same SKU down the full lane depth)
- • Cold storage where reducing aisle count cuts refrigeration-load square footage
When Not to Choose
- • LIFO is acceptable and budget is tight — pushback costs significantly less
- • Your pallet condition varies — flow will not tolerate damaged stringers or warped decks
- • You need high SKU selectivity per bay — stay with selective racking
- • Low-velocity storage where automated FIFO would rarely get used
Specifications at a Glance
- Lane depth
- 2 to 20 pallets deep
- Pallet capacity
- 2,500 lbs standard, up to 4,000 lbs structural
- Rotation
- FIFO (First In, First Out) — enforced automatically
- Flow mechanism
- Gravity rollers or skate wheels at 3–4% pitch
- Speed control
- Centrifugal or hydraulic brake rollers every 4–8 ft
- Pallet quality required
- GMA-grade or better — damaged pallets jam the lane
- Upright style
- 3" × 3" structural channel, heavy-gauge
- Aisle layout
- Separate load and pick aisles
- Code compliance
- IBC 2021 (Maryland amendments), RMI ANSI MH16.1-2023
- Baltimore seismic / wind
- SDC A–B, wind per ASCE 7 (115–120 mph 3-sec gust typical)
Pallet Flow vs. Other High-Density Options
| Attribute | Selective | Pushback | Drive-In | Pallet Flow |
|---|---|---|---|---|
| SKU selectivity | 100% | Medium (per lane) | Low (per bay) | Low (per lane) |
| Rotation | Any (FIFO or LIFO) | LIFO | LIFO | FIFO (automatic) |
| Lane depth | 1 pallet | 2–6 pallets | 2–10 pallets | 2–20 pallets |
| Forklift enters rack | No | No | Yes | No |
| Rack-damage exposure | Low | Low | High | Low |
| Density vs. selective | 1.0× | 1.8–2.0× | 2.0–2.5× | 2.5–3.0× |
| Separate load/pick aisles | No | No | No | Yes |
| Relative cost per position | $ | $$ | $$$ | $$$$ |
Where Pallet Flow Rack Fits in the Baltimore Metro
Specific industries across Baltimore and Maryland where this system pays off.
Refrigerated grocery DC — Jessup, Hanover, Upper Marlboro
Giant Food (Jessup), Wegmans (Hanover), and regional Safeway operations use pallet flow for dairy, produce, and fresh-protein staging where FIFO is non-negotiable and lane depth matches pre-shipment volume per SKU.
Bakery & dairy — Baltimore, Glen Burnie, Timonium
H&S Bakery (Baltimore), Schmidt Baking, and Cloverland Dairy operations run inventory with code dates measured in days. A single LIFO pick can put expired product on a truck. Pallet flow eliminates that risk structurally.
Pharmaceutical & specialty — Hunt Valley, Cockeysville, Elkton
McCormick (Hunt Valley), Becton Dickinson regional operations, and W.L. Gore (Elkton) need strict lot-controlled FIFO for traceability. Pallet flow removes the ability for staff to ship newer pallets ahead of older ones — it physically cannot happen.
Foodservice distribution — Jessup, Halethorpe, Baltimore
Sysco Baltimore (Jessup) and regional foodservice operations run high-SKU-velocity staging where separate load and pick aisles cut lift-truck travel enough to move DC-wide cycle times.
Beverage — Baltimore, Halethorpe, Rosedale
Reliable Churchill, regional Coca-Cola, and beverage co-packers rotate dated syrup and finished product at volume. Pallet flow keeps oldest pallets at the pick face without relying on manual rotation discipline.
Product Features
- Lane depths from 2 to 20 pallets, engineered to your throughput and SKU velocity
- Gravity roller tracks with centrifugal or hydraulic brake-roller speed control
- Separate load and pick aisles — no forklift conflict between the two operations
- Structural-channel uprights rated for deep-lane, high-capacity loading
- Compatible with GMA-grade and heavy-duty pallet specifications
- Engineered to IBC 2021 (Maryland amendments) and RMI ANSI MH16.1-2023
- Sealed structural drawings provided for every Baltimore installation
Benefits for Your Business
Frequently Asked Questions
Real answers for buyers researching pallet flow rack in the Baltimore metro area.
How deep can a pallet flow lane be?
What pallet quality does pallet flow require?
Can I mix SKUs in a pallet flow lane?
How fast do pallets flow down the rollers?
How does pallet flow compare to drive-in rack?
What is the ROI picture for pallet flow?
